Guardian Lifts 12000WD
The GL-12000-WD is made for drivers who expect their lift to work as hard as they do. Built to handle heavy-duty dually pickups, it’s tough enough for the big jobs during the week but versatile enough for your classic cars, hot rods, and weekend projects too.
As the only 4-post lift of its kind, the GL-12000-WD gives you the confidence to take on whatever you roll into the garage. With an impressive 12,000-lb. lifting capacity, it’s ready for everything from serious work to showing off your pride and joy.
Pickup currently not available
Guardian Lifts 12000WD is equipped with:

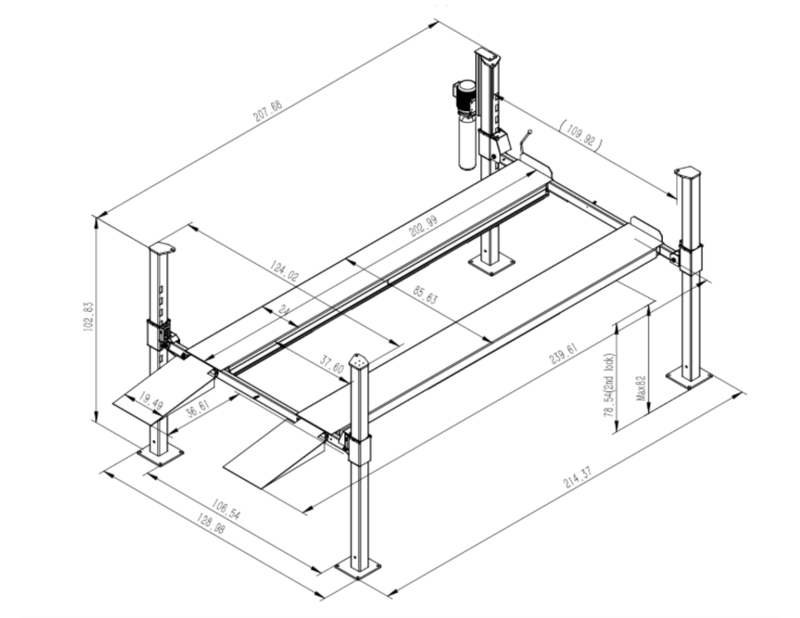

| Lifting Capacity | 12,000 lbs. |
|---|---|
| Overall Height of Corner Posts | 105" - 8'9" |
| Max Clearance on Top Lock | 82" - 6'10" |
| Size Column/Baseplate | 5"x5" COLUMN- 12"x12" BASEPLATE |
| Track Height | 4.5" |
| Track Length | 203" - 16'11" |
| Track Width | 24" |
| Overall Length (No Ramps) | 215" - 17'11" |
| Overall Width Outside Posts | 124" - 10'5" |
| Floor Space Footprint | L 215” / 17'11'' x W 129” / 10'9'' |
| Outside Width Track to Track | 85” |
| Width Between Rails/Track | 37.5” / 34.75” |
| Width Between Posts | 114'' / 9'6'' |
| Standard Motor | 240V 20AMP |
| Shipping Weight | 3,000 lbs |
| Shipping Dimensions (LxWxH) | 205" x 25" x 29" |
*Minimum Height Requirements:*
Measure the height of your vehicles and enter for Vehicle A & Vehicle B
Clearance in Inches Under Runways
From home garages to professional shops, Guardian Lifts provides the confidence you need to lift, store, and service with peace of mind.
