$4,995.00 + Freight

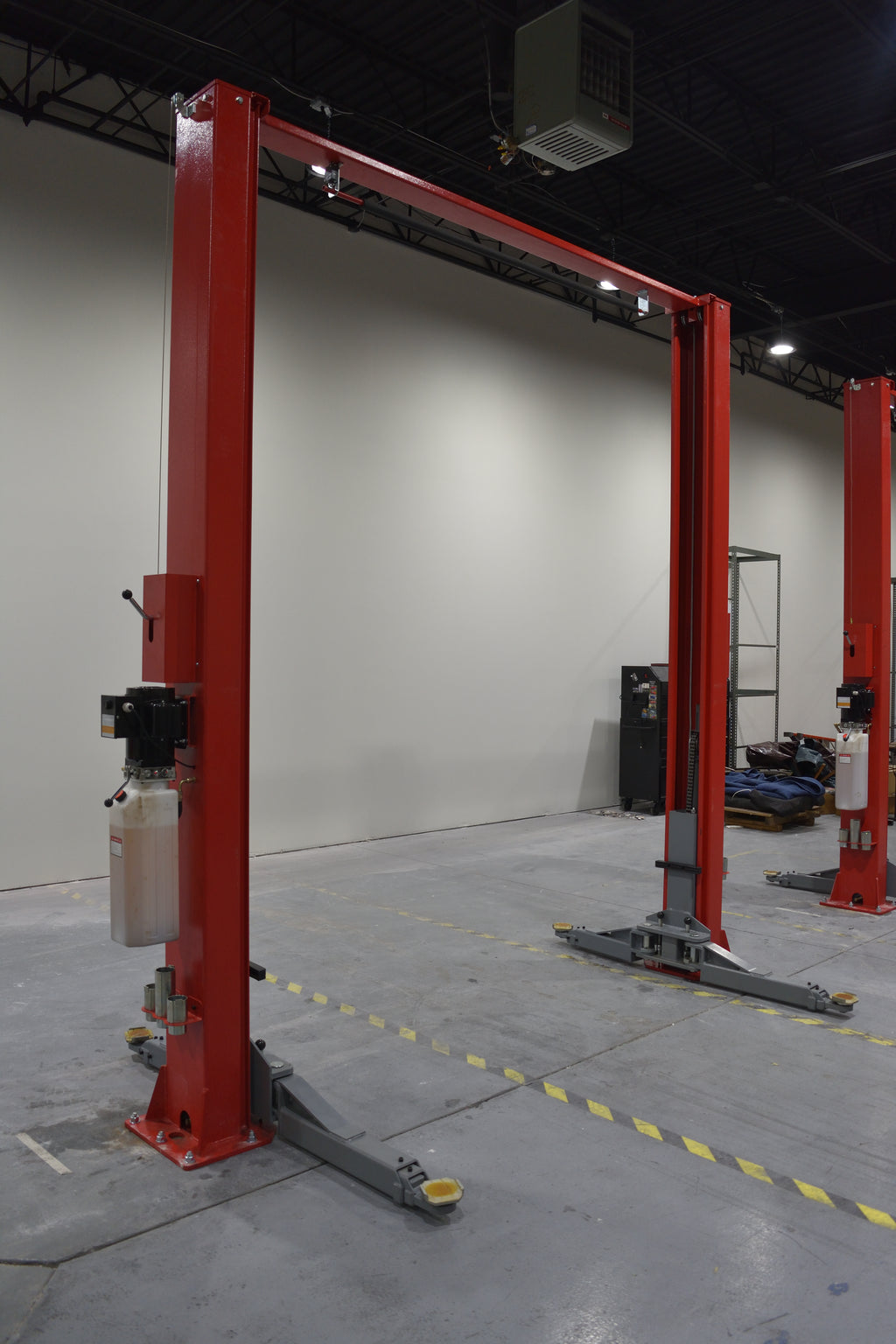

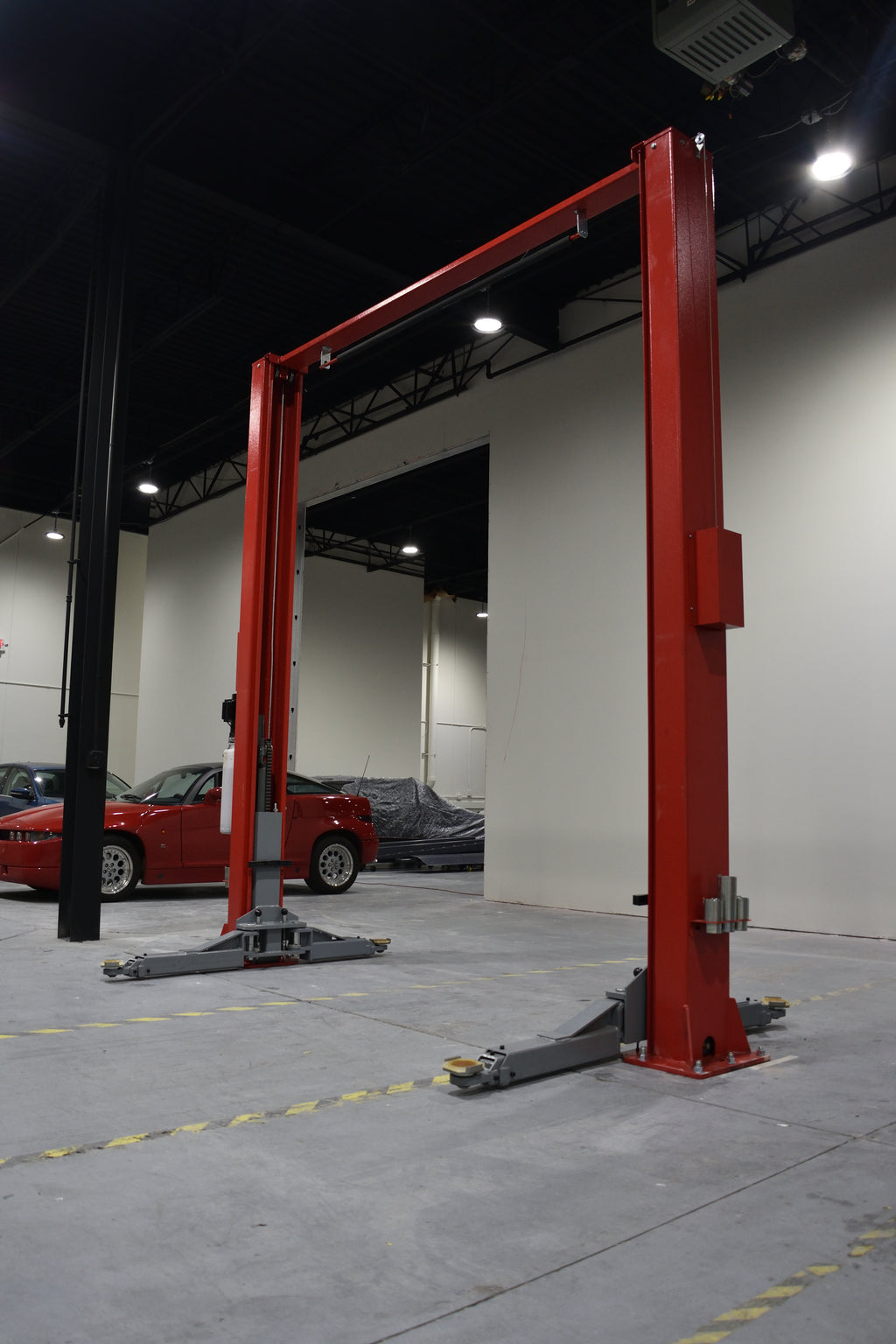

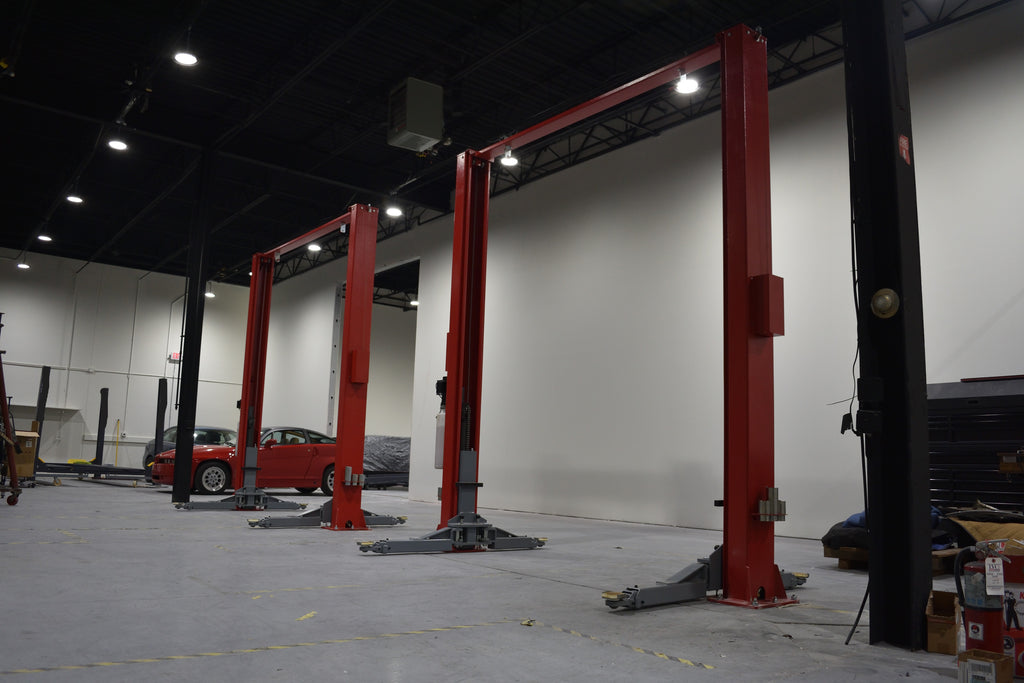

Guardian GL-12-OH 12,000 lb. 2-Post Lift

When it comes to strength and reliability, the Guardian GL-12-OH delivers on all fronts. Designed to lift cars, SUVs, heavy-duty trucks, and tall cargo vans, this powerhouse provides a 12,000 lb. lifting capacity — giving you the freedom to take on any project with confidence. Stack adapters are included for added versatility.

Built for performance and longevity, the GL-12-OH combines rugged construction with smooth operation, making it an ideal choice for both professional shops and home garages.

Key Features:

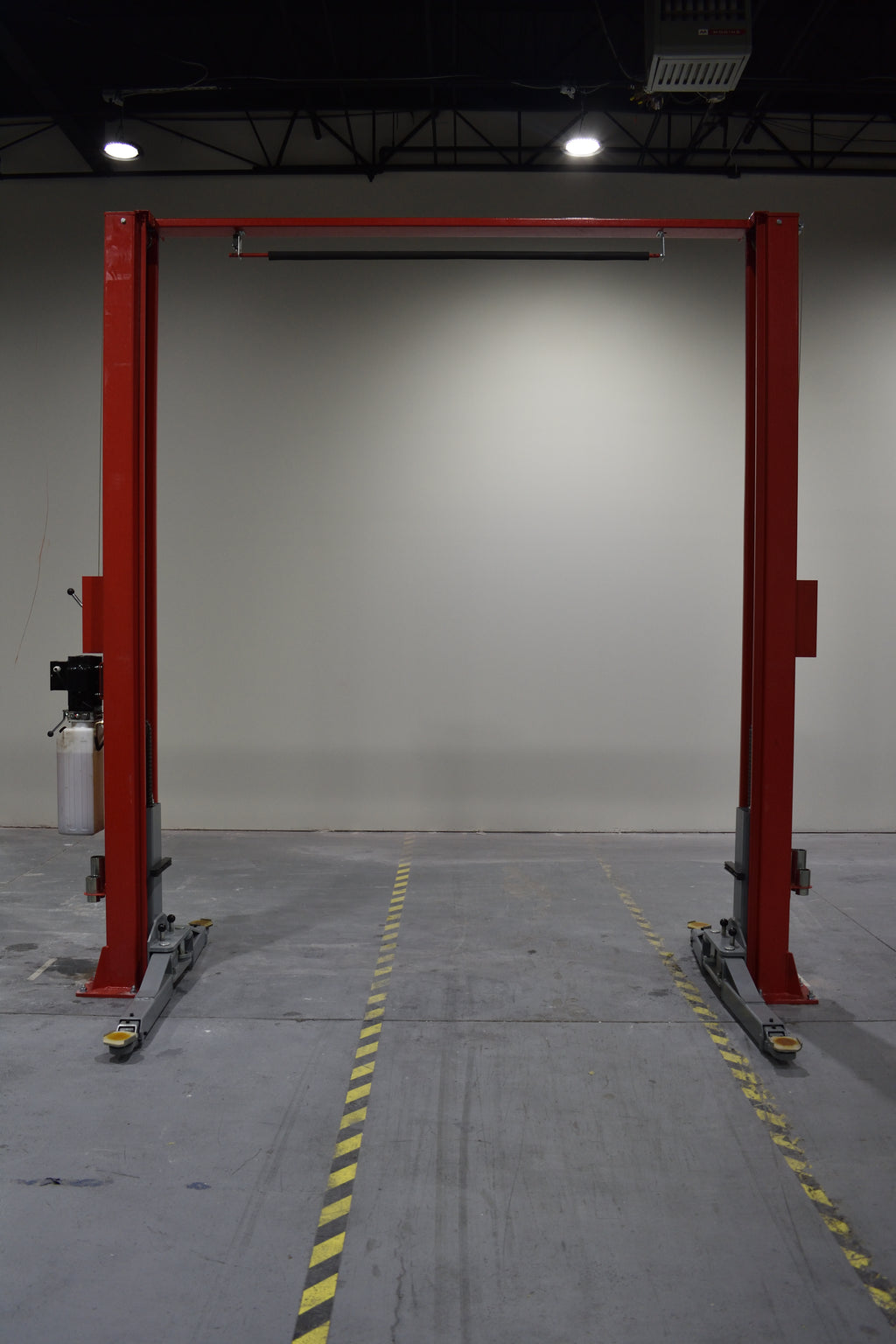

  • Wide drive-through clearance between posts for easy access

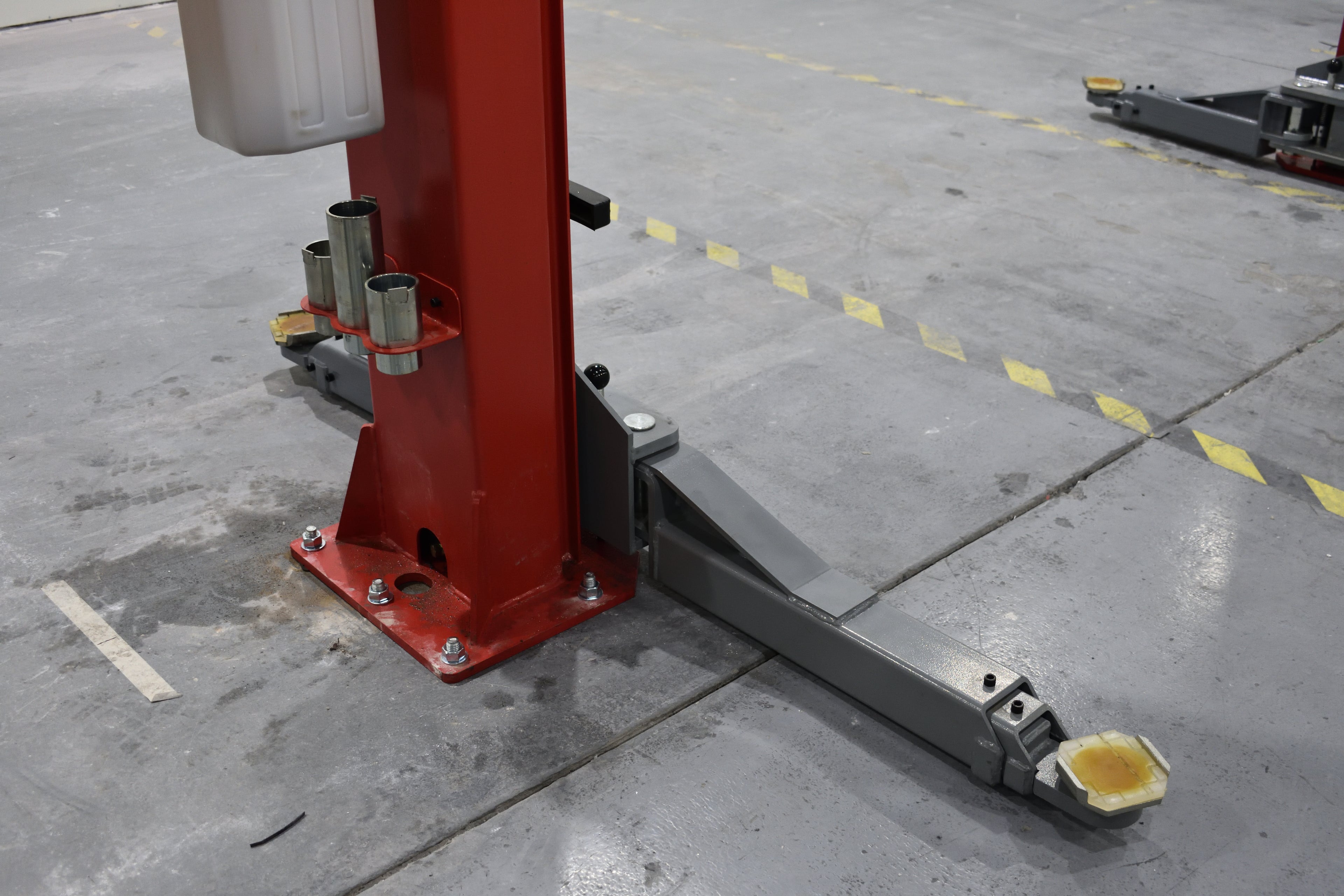

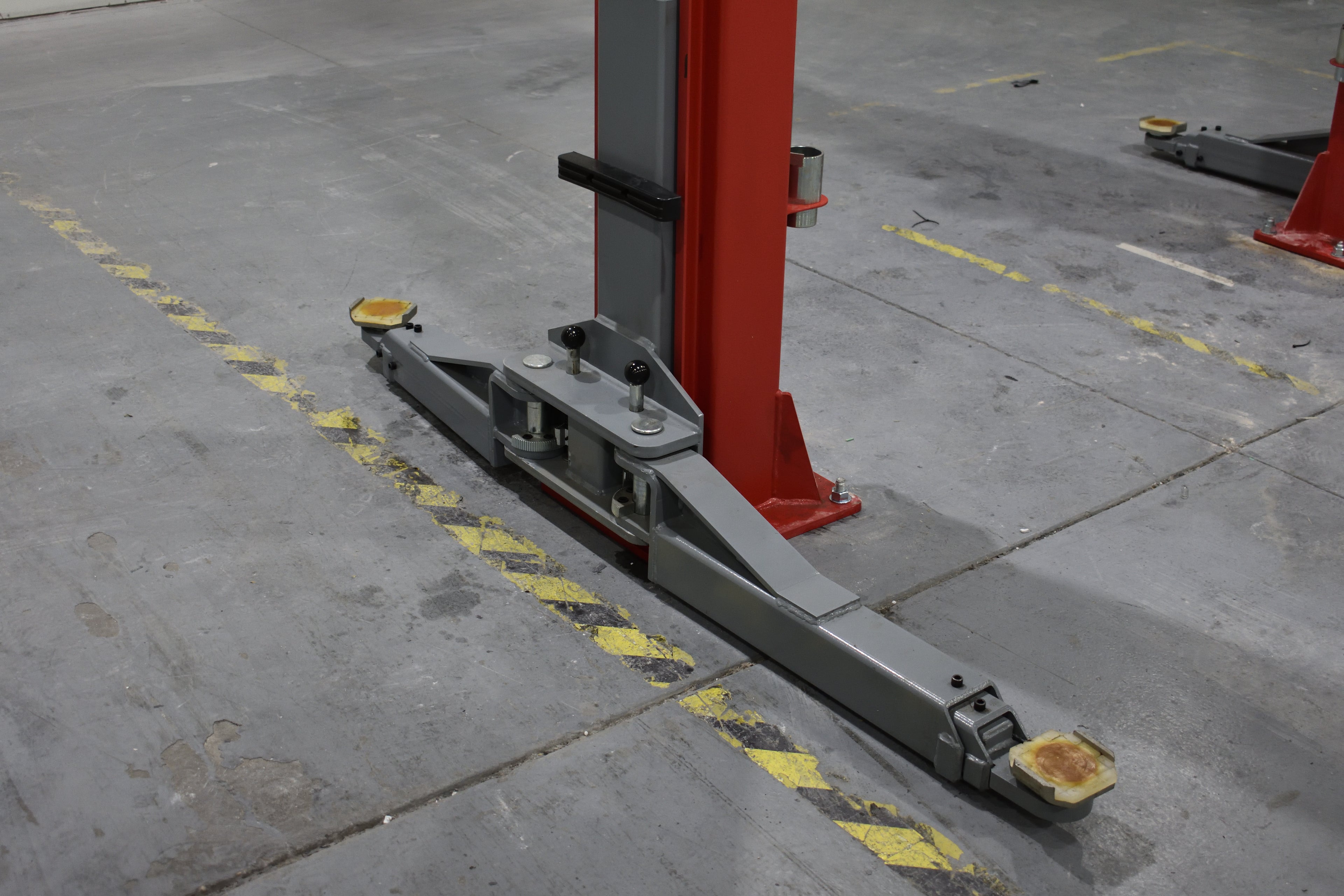

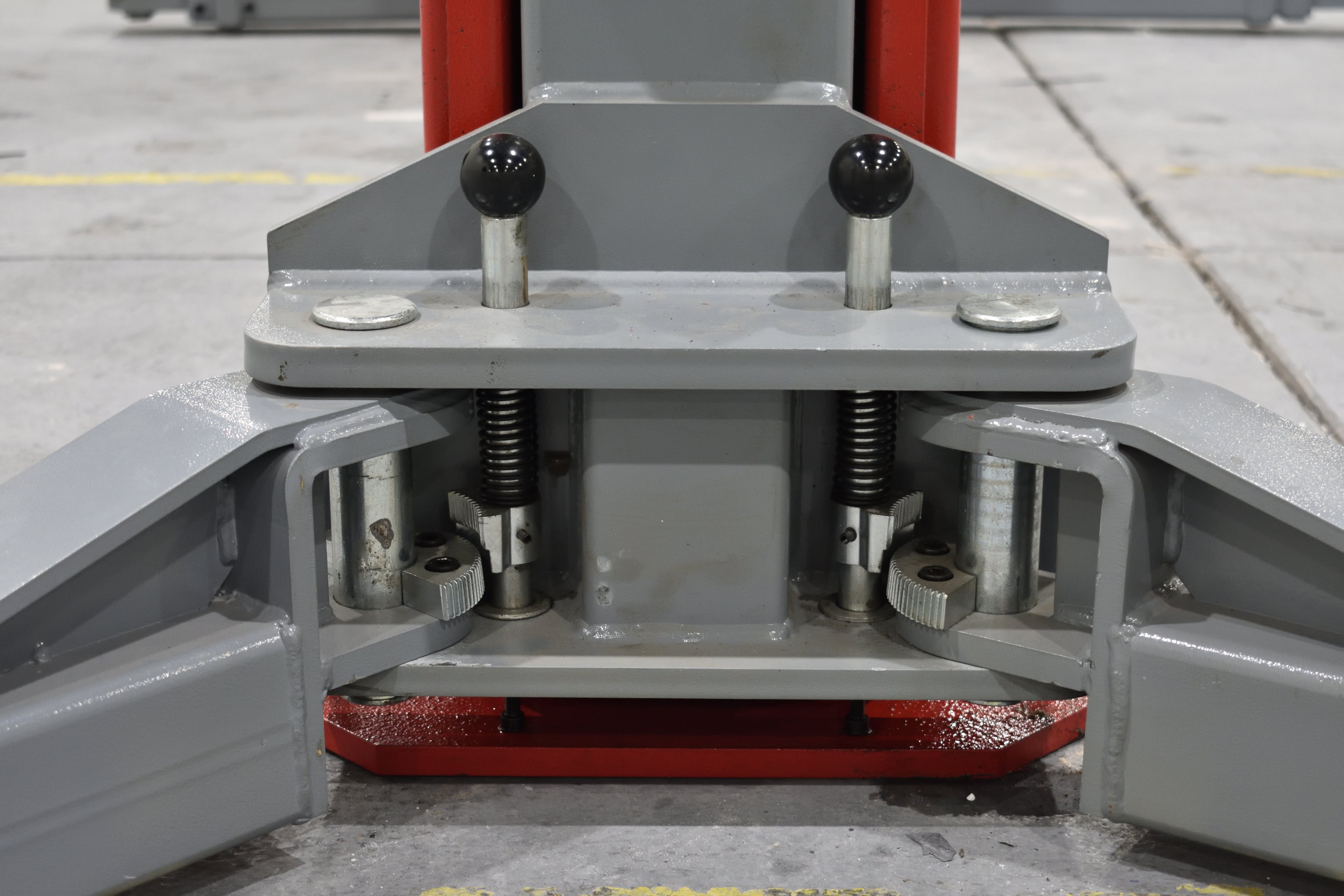

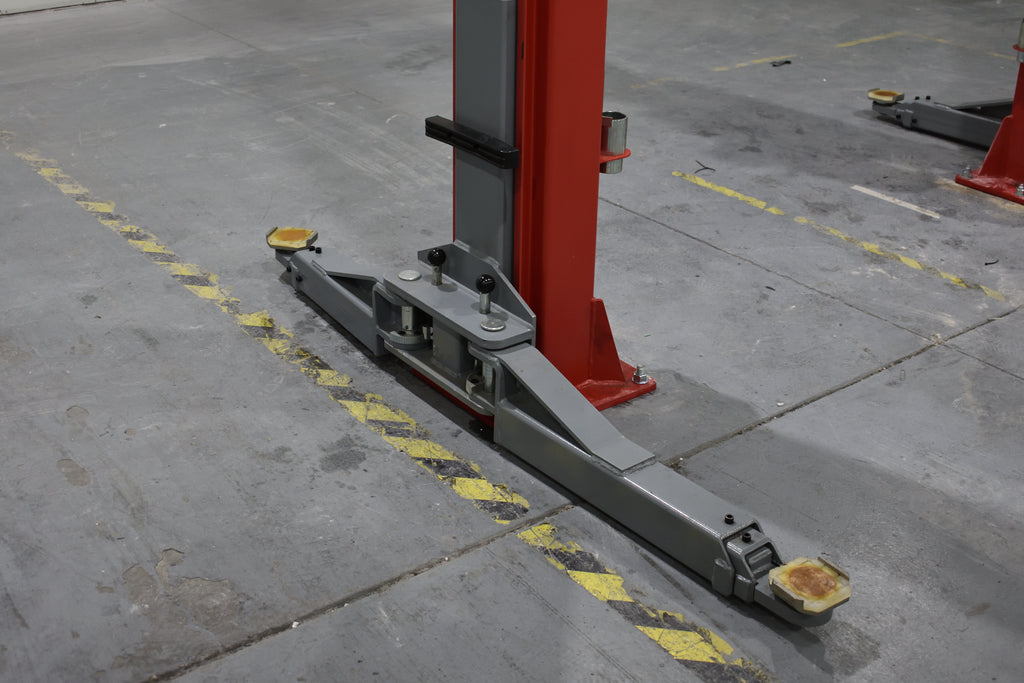

  • 2-stage arms with 4.5” adjustable lifting pads

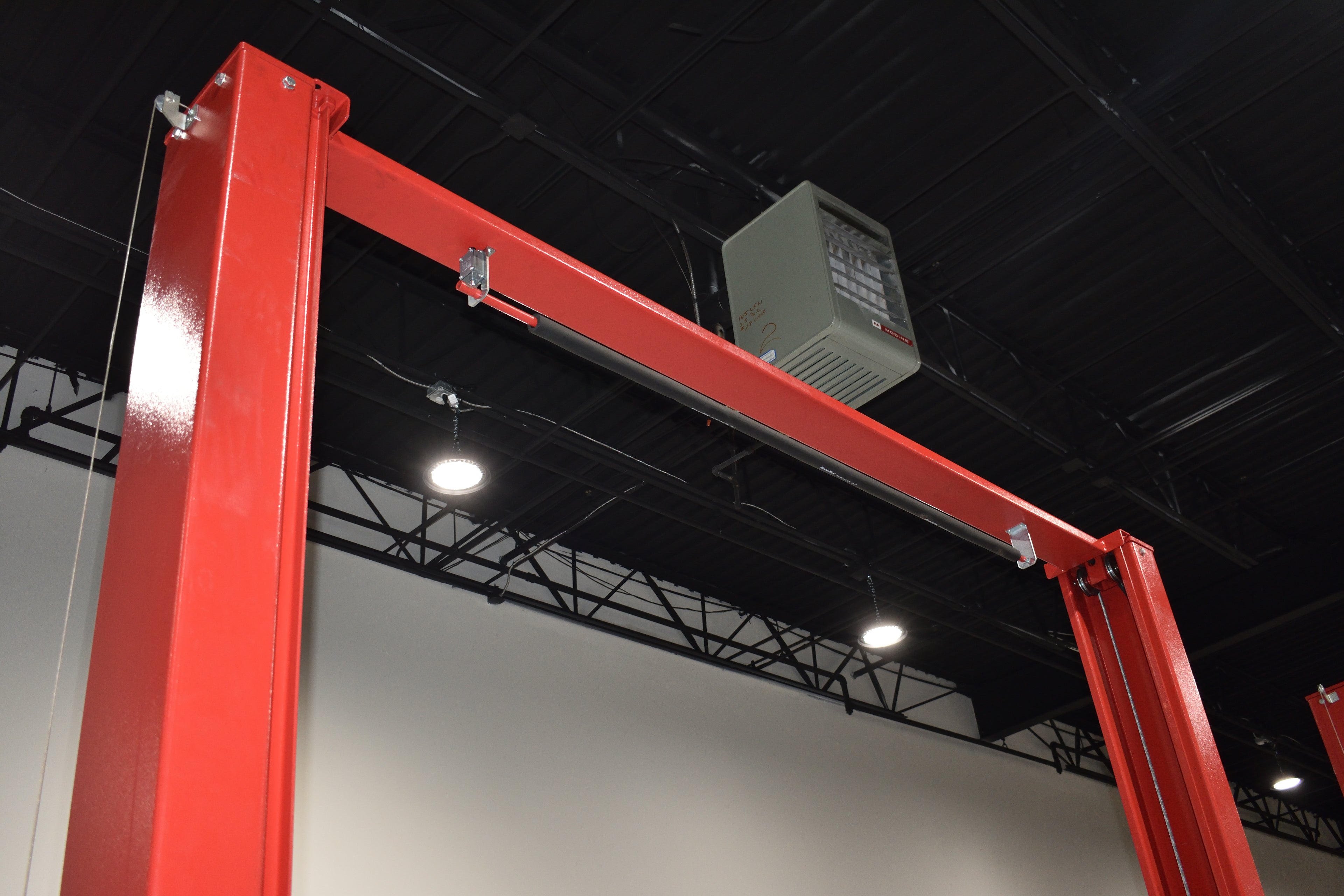

  • Single-point overhead lock release for quick and simple operation
  • Reinforced single-piece column design for added durability
  • “S” style column design improves strength and stability
  • Screw-up universal pads to accommodate various vehicle types

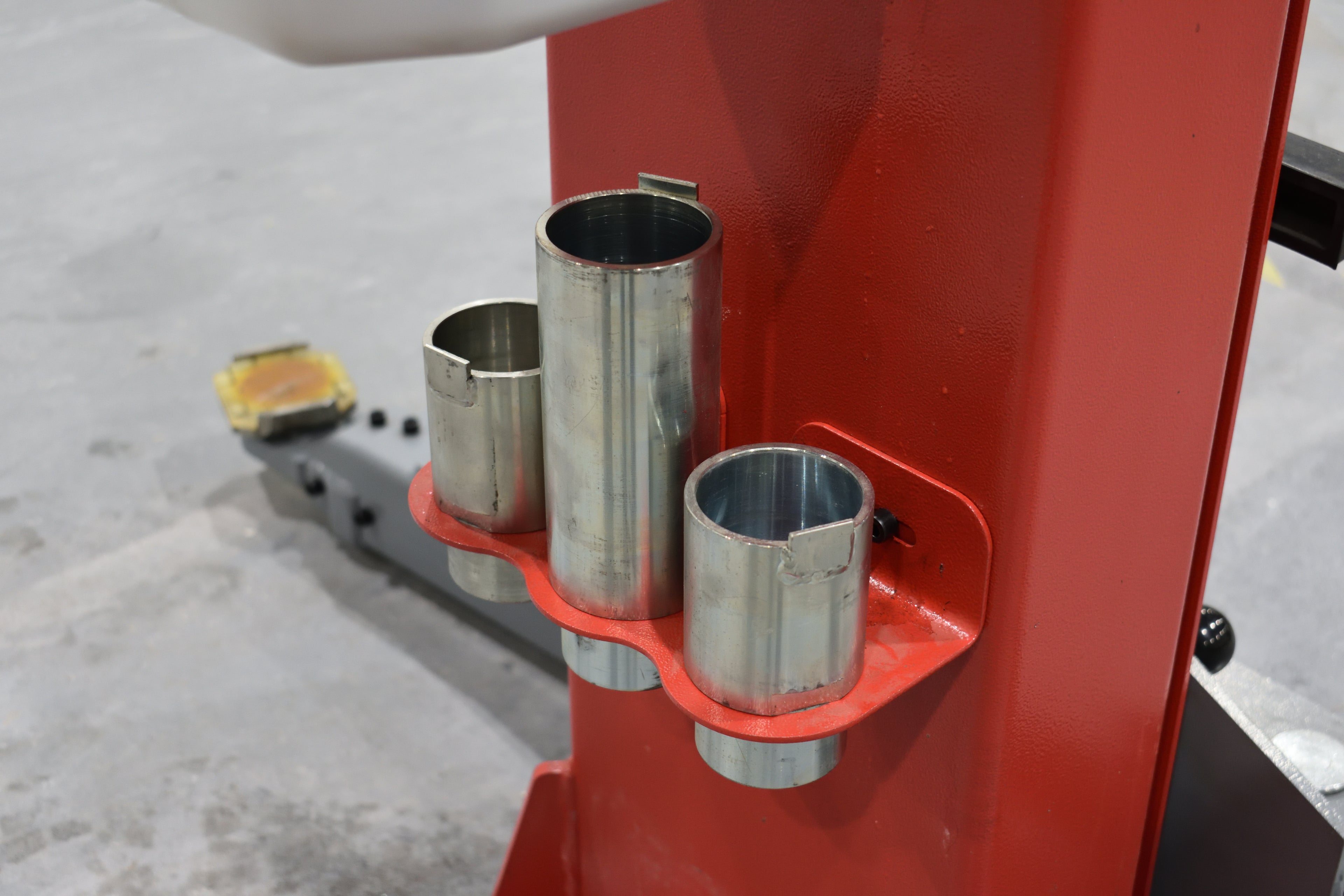

  • Stack-on truck adapters included

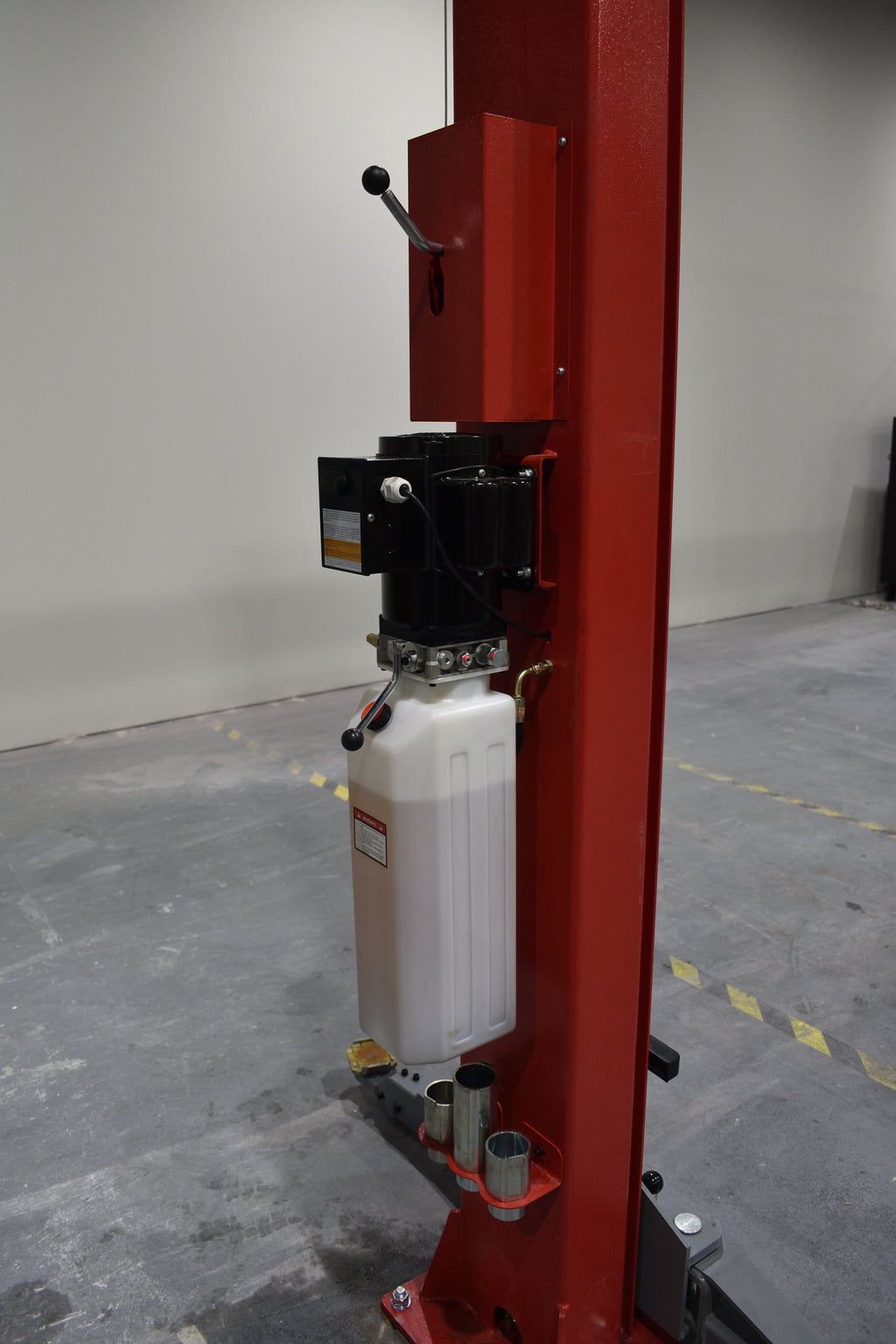

  • ETL-recognized 220V power unit for reliable performance
  • 7- year limited warranty

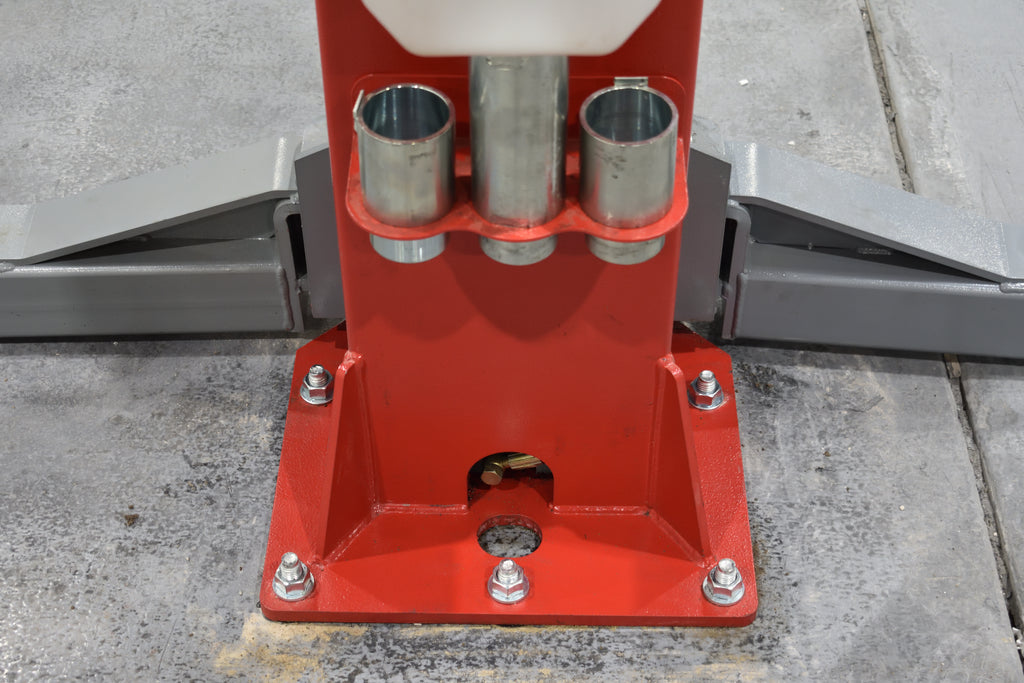

  • Includes all mounting hardware (14 lag bolts: 5½" x ¾") and shims for leveling

Installation Requirements:

Requires a minimum ceiling height of 12 ft. and a 5" thick concrete slab rated at 3,500+ PSI, free of cracks or seams.

Installation available in most areas

After you place your order online, we will reach out to you to confirm order, shipping, and installation details.

Our lifts are designed for convenience, safety, and versatility — perfect for garages of any size.

Guardian Lifts 12k 2-post (Overhead) is equipped with:

  • ✔ 12,000 LBS lifting capacity
  • ✔ Symmetric lifting configuration
  • ✔ 2 Stage Front/Rear adjustable arms
  • ✔ Low-profile pad height (4.5")
  • ✔ Approx. 43 seconds lift speed
  • ✔ 240V/ 20 AMPS/ 1PH standard motor

Product Specifications for Guardian Lifts 12k 2-post (Overhead)

Lifting Capacity12,000 LBS
Lifting ConfigurationSymmetric
Arms2 Stage Front/Rear
Rise Height72.75" / 6'0.75"
Overall Height143"/ 11'11"
Drive-Thru Clearance119.25"/ 9'11.25"
Floor to Overhead Switch137"/ 11'5"
Front Arm Reach37"-55"/ 3'1"-4'7"
Rear Arm Reach37"-55"/ 3'1"-4'7"
Min. Pad Height4.5"
Inside Columns130"/ 10'10"
Motor / Voltage240V/ 20 AMPS/ 1PH
Speed of RiseApprox. 43 seconds
Ceiling Height Requirement144"/12"
Shipping Weight2,400 LBS
Shipping Dimensions (L × W × H)147" x 20" x 49"/ 12'3" x 1'8"x 4'1"

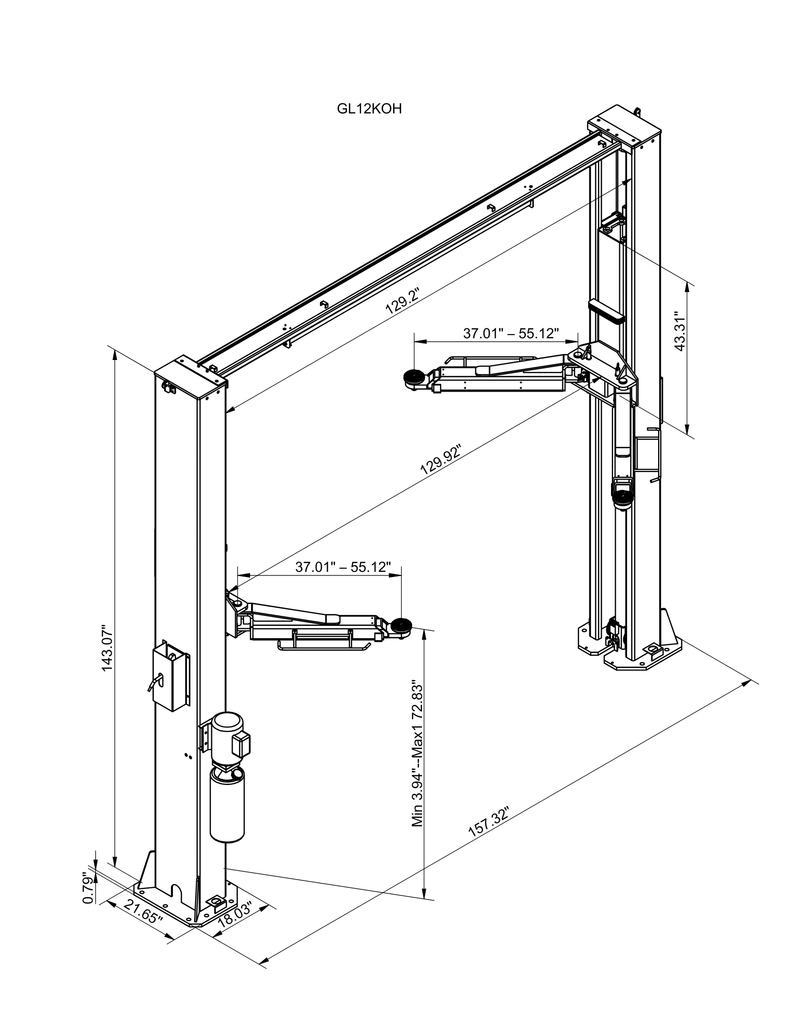

Schematic Diagram

Schematic preview for Guardian Lifts 12k 2-post (Overhead)
Click image to download full schematic (PDF)
