Guardian Lifts 9000CXL
$4,995.00 + Freight

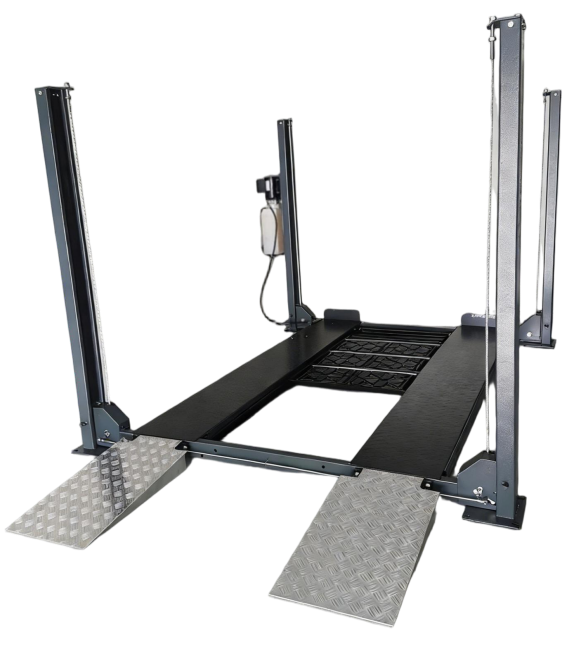

The GL-9000CXL 4 post lift offers a lower price point while still being able to lift full size trucks and SUVs. This lift is a C-Channel design lift but still features the build quality that customers expect out of a Guardian Lift. The GL-9000CXL does not need to be bolted to the floor and can be moved around in your garage/shop using the included casters.
Installation available in most areas
Flooring Requirement: Standard 4" Concrete
Power Requirement: 120V, 20amp
Key Features
- 9000 lb Lifting Capacity
- C - Channel Design
- Reinforced Boxed in Runways

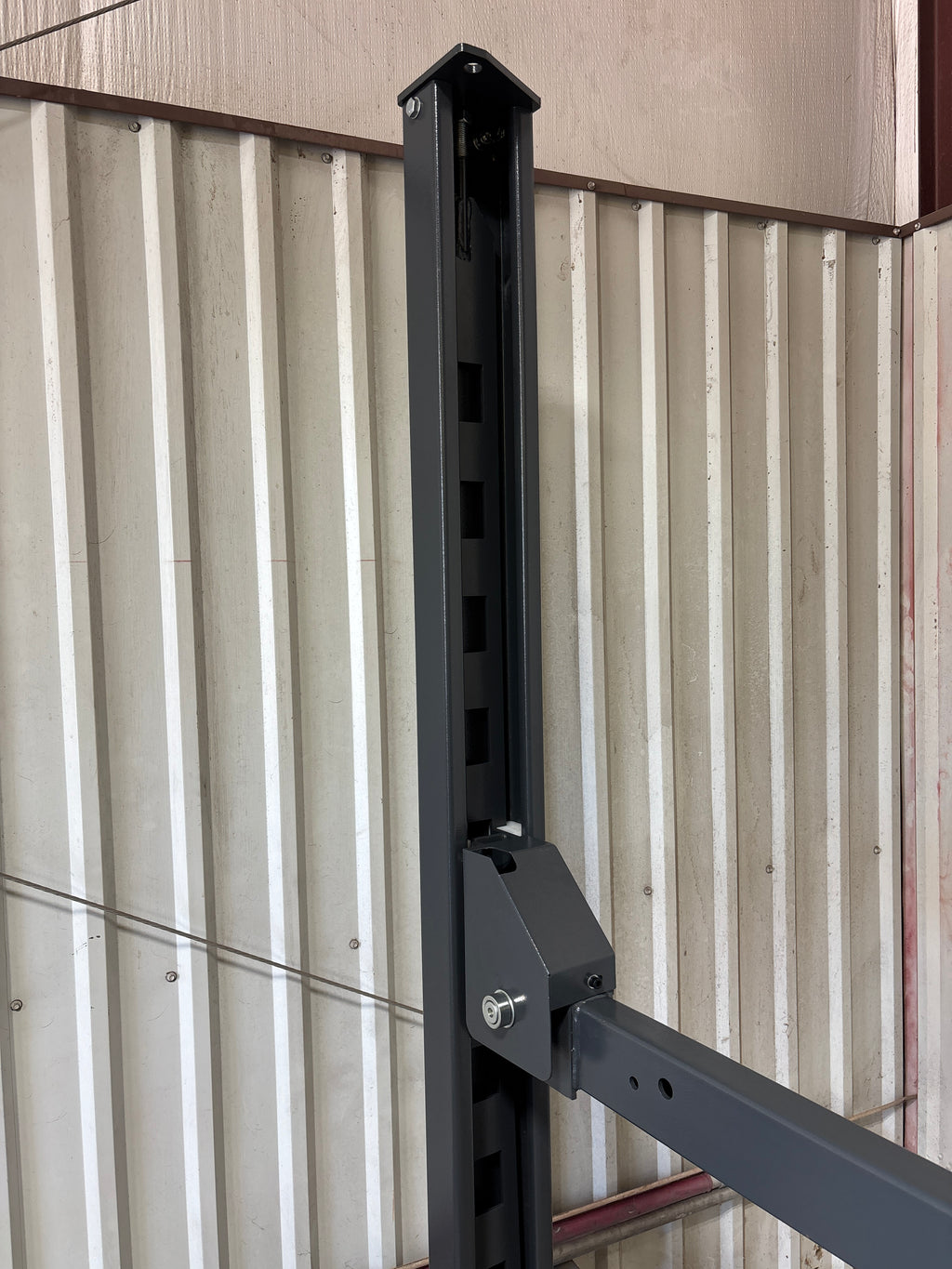

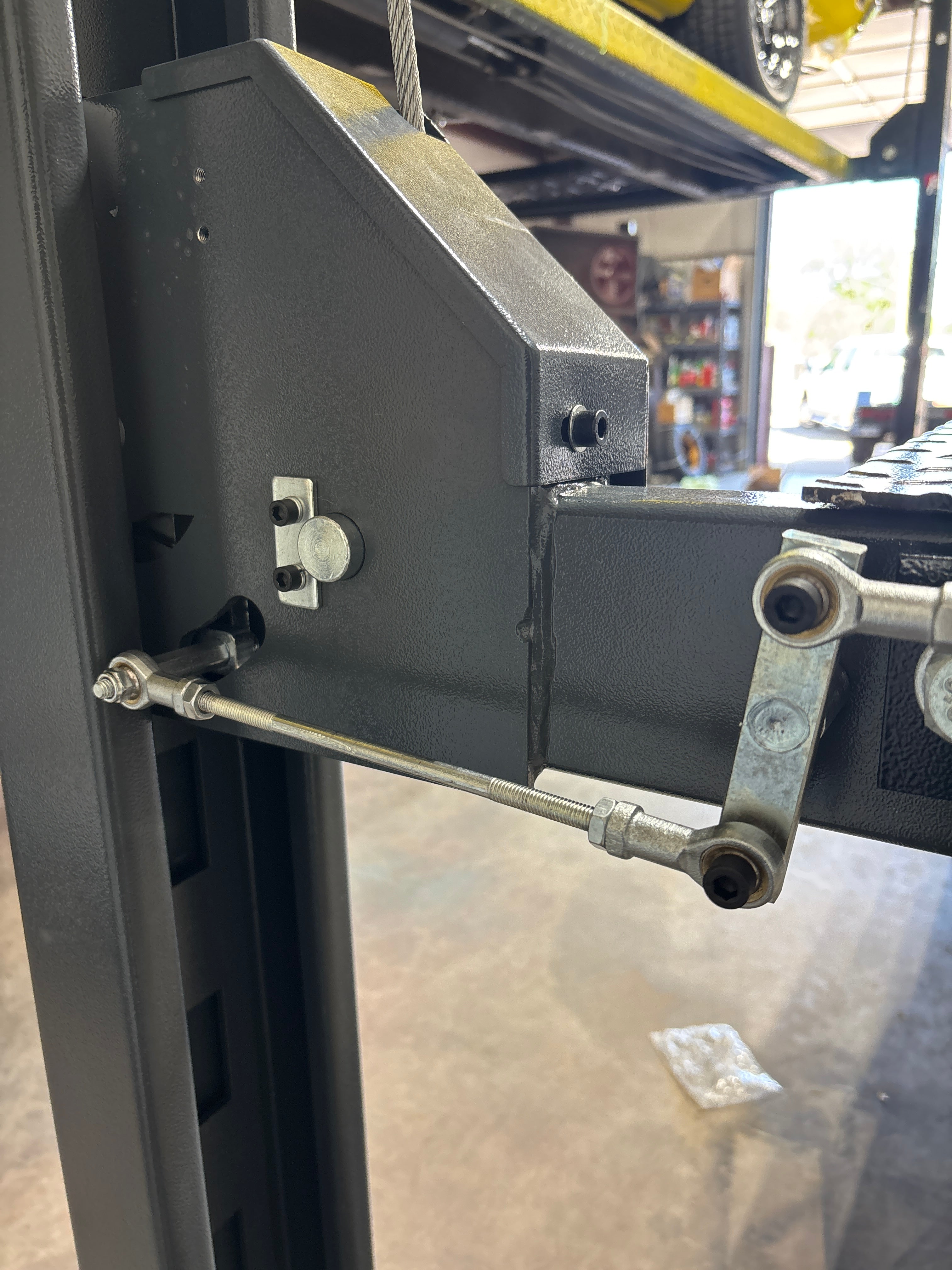

- Secondary Safety Locks
- Durable Powder Coat Finish
- J-Channel Center Rail System
- 120V ETL Certified Motor
- Flow Restrictor Anti Surge Valve
- 7-Year Limited Warranty
What’s Included:
- Aluminum ramps
- 3 Drip Trays

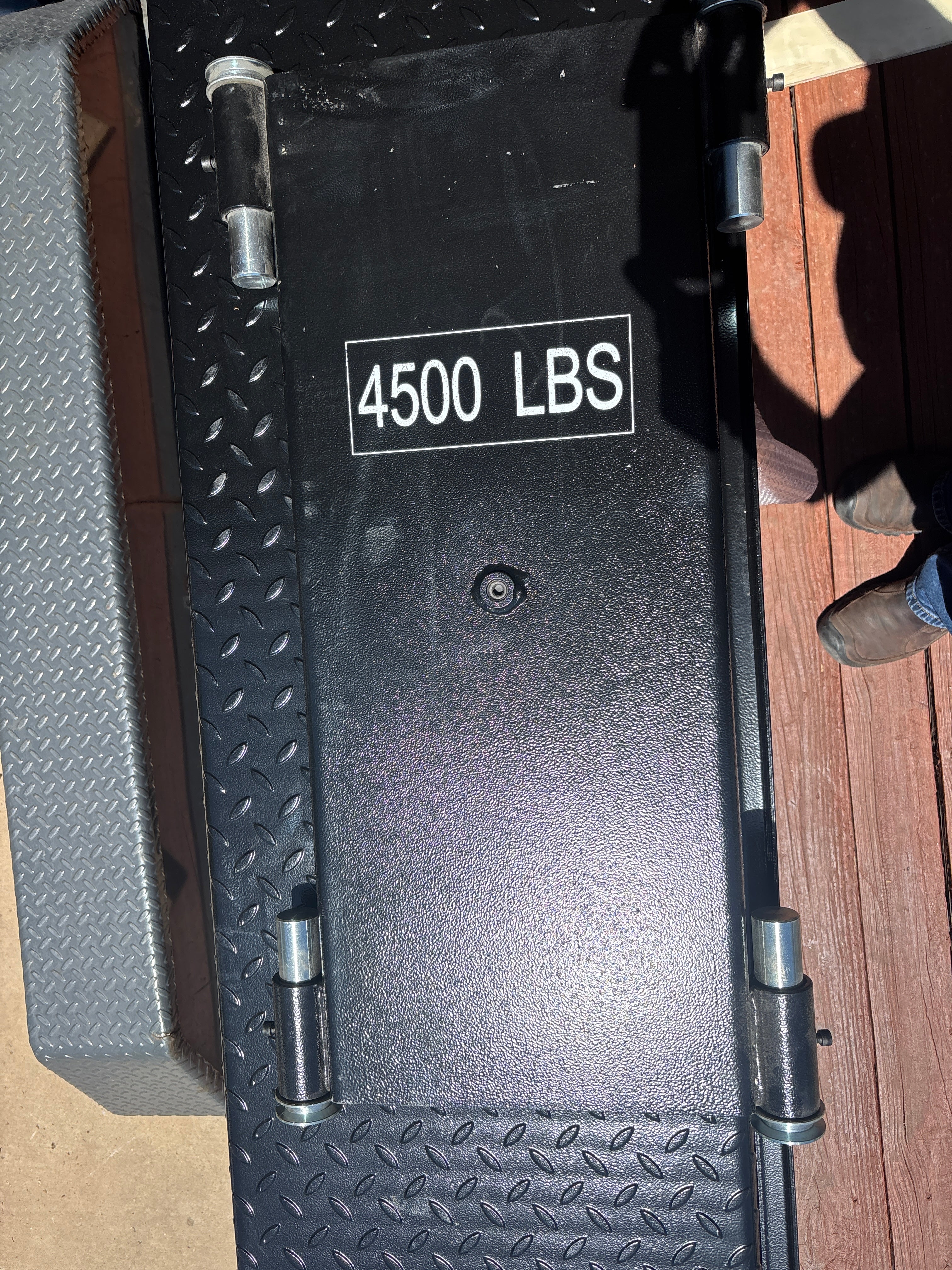

- Rolling Jack Tray
- Mobile Caster Kit
- Wheel End Stops
- ETL Certified Power Unit
C-Channel Design
Post Height: 8' 4"
Overall Length: 16' 10"
Overall Width: 9' 2"
Drive Under Clearance Height: 6' 10"
Drive Through Width Bottom: 100"
Drive Through Width Top: 96"
Outside Runway to Outside Runway: 80"
Pickup available at Guardian Lifts
Usually ready in 24 hours

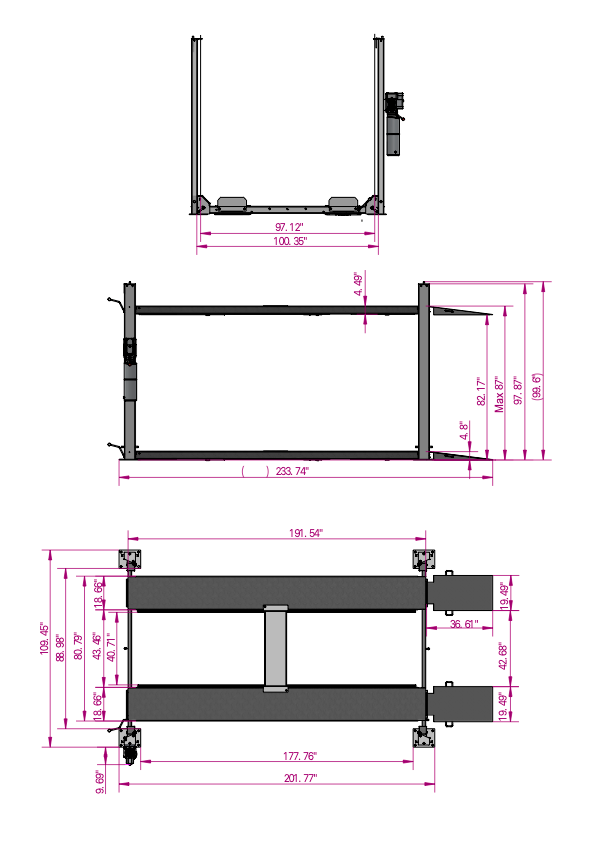

Product Specifications for Guardian Lifts 9000CXL
| Lifting Capacity | 9000 lbs. |
|---|---|
| Overall Height of Corner Posts | 99.6" / 8'4" |
| Max Clearance on Top Lock | 82" / 6'10" |
| Track Height | 4.5" |
| Track Length | 191.54" / 15'11" |
| Track Width | 18.66" |
| Overall Length (No Ramps) | 201.77" / 16'10" |
| Floor Space Footprint | 201.77" X 109.45" / 16'10" X 9'2" |
| Outside Width Track to Track | 80.79" |
| Width Between Rails/Track | 40.71" |
| Width Between Posts | 100.35" / 8'4" |
| Standard Motor | 120V 20 Amp |
Will It Fit? How tall do my ceilings need to be?
Side Mount Garage Door Opener and/or raising garage door rails may be needed to gain required clearance
Minimum Clearance Height Calculator
Measure the height of your vehicles and enter for Vehicle A & Vehicle B
Locking Heights
Clearance in Inches Under Runways
GL-9000HD
19"
24"
29"
34"
39"
44"
49"
54"
59"
64"
70"
GL-9000XLT
21"
26"
31"
36"
41"
46"
51"
56"
61"
66"
71"
77"
82"
GL-12000WD
21"
26"
31"
36"
41"
46"
51"
56"
61"
66"
71"
77"
82"
GL-10000SXS
21"
26"
31"
36"
41"
46"
51"
56"
61"
66"
71"
77"
82"
