Guardian Lifts 10k 2-post (Floorplate)
$3,995.00 + Freight
Guardian GL-10F 10,000 lb. 2-Post Lift
The Guardian GL-10F is a reliable 2-post lift designed for lifting cars, SUVs, and light-duty trucks. With a 10,000 lb. capacity, it’s ideal for routine maintenance and repair work in home garages or professional shops.
Built for durability and stability, the GL-10F features reinforced single-piece columns, 3-stage arms with a low 3.75" pad height, "excellent for low profile vehicles" and an “S” style column design for added strength.
Key Features:
- 3-stage arms with low 3.75" profile
- Reinforced single-piece column construction
- “S” style column design for added stability
- Screw-up universal lifting pads
- Stack-on truck adapters included
- ETL-recognized 220V power unit
- Includes mounting hardware and shims
- 7- year limited warranty
Installation Requirements:
Requires a minimum ceiling height of 9’6” and a 4.5" thick concrete slab rated at 3,500+ PSI, free of cracks or seams.
Installation available in most areas
Anchor Bolts 5" X 3/4"
Pickup currently not available
Our lifts are designed for convenience, safety, and versatility — perfect for garages of any size.
Guardian Lifts 10k 2-post (Floorplate) is equipped with:
- ✔ 10,000 LBS lifting capacity
- ✔ Symmetric lifting configuration
- ✔ 3 Stage Front/Rear adjustable arms
- ✔ Low-profile pad height (3.75")
- ✔ Approx. 43 seconds lift speed
- ✔ 240V/ 20 AMPS/ 1PH standard motor
Product Specifications for Guardian Lifts 10k 2-post (Floorplate)
| Lifting Capacity | 10,000 LBS |
|---|---|
| Lifting Configuration | Symmetric |
| Arms | 3 Stage Front/Rear |
| Rise Height | 74.75"/6'2.75" |
| Overall Height | 111.25"/ 9'3.25" |
| Drive-Thru Clearance | 101.5"/ 8'5.5" |
| Floor to Overhead Switch | N/A |
| Front Arm Reach | 24.75"-42.5"/ 2'0.75"-3'6.5" |
| Rear Arm Reach | 31.25"-59"/ 2'7.25"-4'11 |
| Min. Pad Height | 3.75" |
| Inside Columns | 110.5"/9'2.5" |
| Motor / Voltage | 240V/ 20 AMPS/ 1PH |
| Speed of Rise | Approx. 43 seconds |
| Ceiling Height Requirement | 114" / 9'6" |
| Shipping Weight | 1,465 LBS |
| Shipping Dimensions (L × W × H) | 114" x 20" x 43"/ 9'6" x 1'8" x 3'7" |

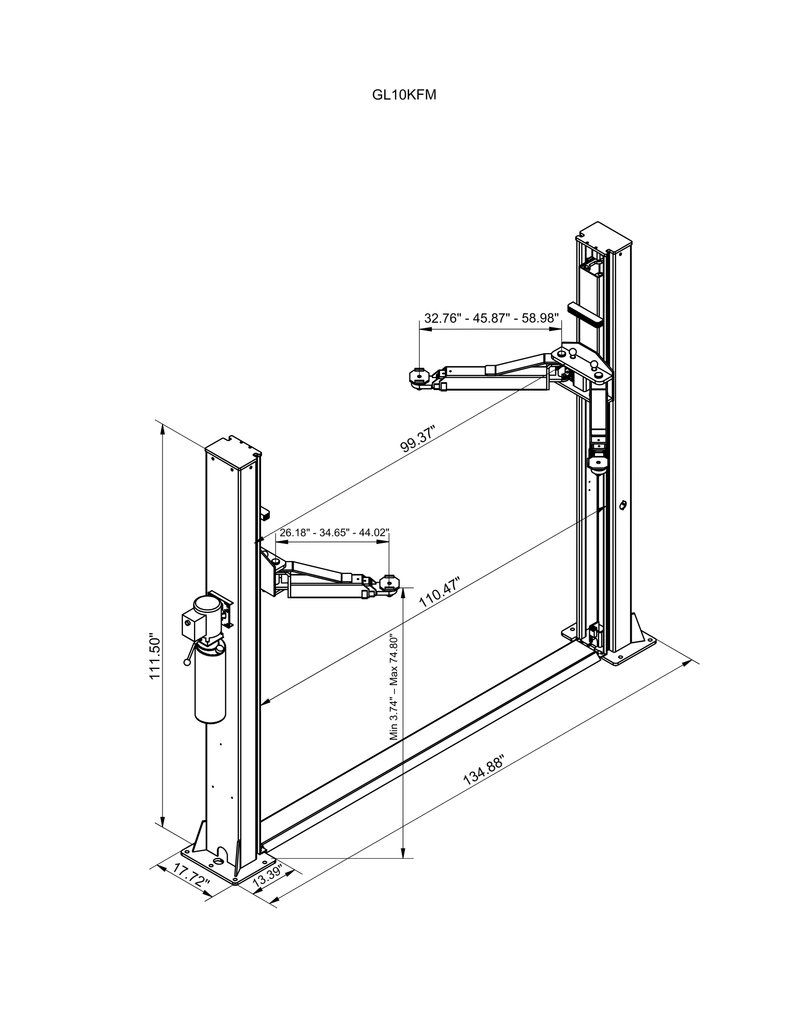

Schematic Diagram
Click image to download full schematic (PDF)
