Guardian Lifts 12k 2-post (Floorplate)
$4,995.00 + Freight
Guardian GL-12F 12,000 lb. 2-Post Lift
The Guardian GL-12F is built for power, performance, and reliability. Designed to handle everything from cars and SUVs to heavy-duty trucks, this lift delivers the strength you need for maintenance, repairs, and everyday shop work. With a 12,000 lb. lifting capacity, it’s a dependable solution for professionals and serious enthusiasts alike.
Built with durability in mind, the GL-12F features heavy-duty single-piece columns, a smooth dual lock release system, and wide drive-through clearance for easy access. Every detail is engineered for long-lasting performance and safe operation.
Key Features:
- Wide drive-through space between posts for easy vehicle access
- 2-stage arms with 4.5” adjustable lifting pads
- Smooth dual lock release system
- Reinforced single-piece column design for added strength
- “S” style column shape for extra stability and balance
- Screw-up universal pads for a secure lift on multiple vehicle types
- Stack-on truck adapters included for larger vehicles
- ETL-recognized 220V power unit for dependable operation
- 7- year limited warranty for peace of mind

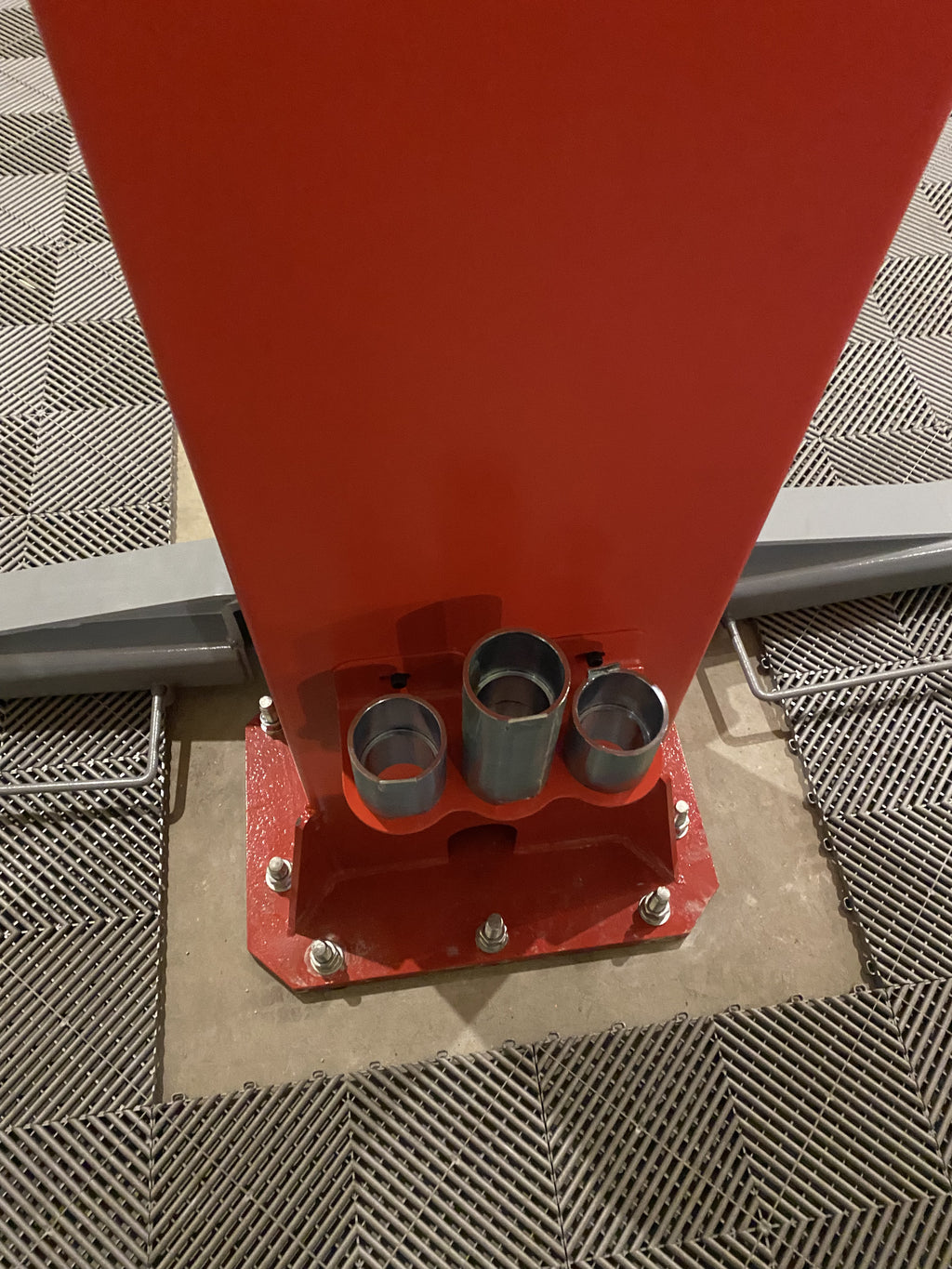

- Includes all mounting hardware (14 lag bolts: 5½" x ¾") and shims for proper leveling
Installation Requirements:
Requires a minimum ceiling height of 10’6” and a 5" thick concrete slab rated at 3,500+ PSI, free of cracks or seams.
Installation available in most areas
Pickup currently not available
Our lifts are designed for convenience, safety, and versatility — perfect for garages of any size.
Guardian Lifts 12k 2-post (Floorplate) is equipped with:
- ✔ 12,000 LBS lifting capacity
- ✔ Symmetric lifting configuration
- ✔ 2 Stage Front/Rear adjustable arms
- ✔ Low-profile pad height (4.5")
- ✔ Approx. 43 seconds lift speed
- ✔ 240V/ 20 AMPS/ 1PH standard motor
Product Specifications for Guardian Lifts 12k 2-post (Floorplate)
| Lifting Capacity | 12,000 LBS |
|---|---|
| Lifting Configuration | Symmetric |
| Arms | 2 Stage Front/Rear |
| Rise Height | 72.75" / 6'0.75" |
| Overall Height | 121"/10'1" |
| Drive-Thru Clearance | 119.25"/ 9'11.25" |
| Floor to Overhead Switch | N/A |
| Front Arm Reach | 37"-55"/ 3'1"-4'7" |
| Rear Arm Reach | 37"-55"/ 3'1"-4'7" |
| Min. Pad Height | 4.5" |
| Inside Columns | 130"/ 10'10" |
| Motor / Voltage | 240V/ 20 AMPS/ 1PH |
| Speed of Rise | Approx. 43 seconds |
| Ceiling Height Requirement | 124"/ 10'4" |
| Shipping Weight | 2,250 LBS |
| Shipping Dimensions (L × W × H) | 122"x 21"x 46"/ 10'2"x 1'9"x 3'10:" |

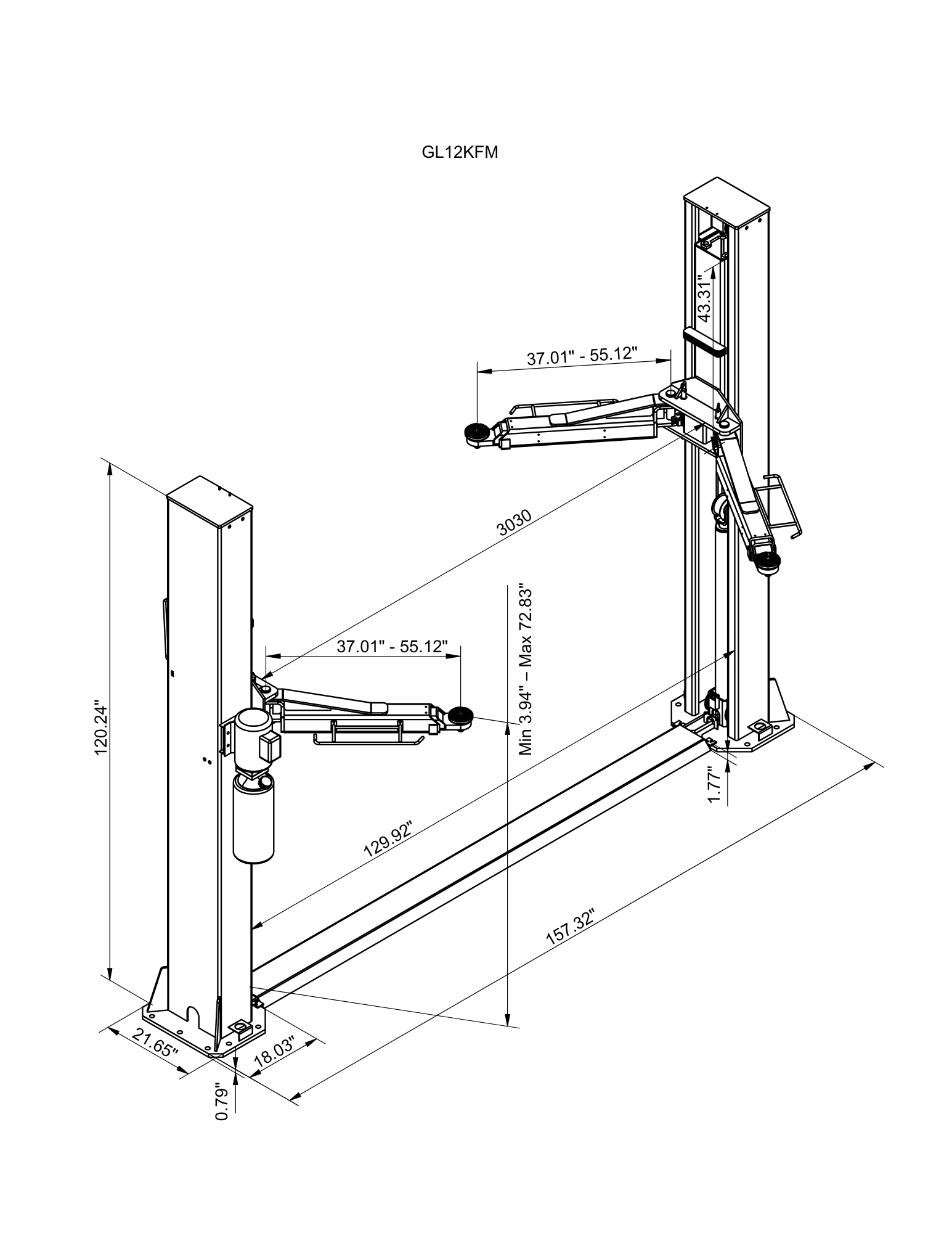

Schematic Diagram
Click image to download full schematic (PDF)
