Choosing the Right Lift
Find the perfect Guardian Lift for your garage, vehicles, and workflow.
Selecting the right automotive lift isn’t just about weight capacity; it’s about matching your space, your vehicles, and the way you work. Whether you’re a home enthusiast or a professional shop owner, Guardian Lifts offers precision-engineered solutions that put safety, strength, and reliability first.
Our 2-post and 4-post lifts are built to meet different needs, from compact spaces and everyday maintenance to large vehicles and long-term storage. Each model reflects our commitment to quality craftsmanship and customer confidence, helping you lift smarter, safer, and with total peace of mind.
Compare Our Lifts
For the best mobile experience, download our comparison chart:
Download Comparison PDF| FEATURE |
GL-9000HD
|
GL-9000XLT
|

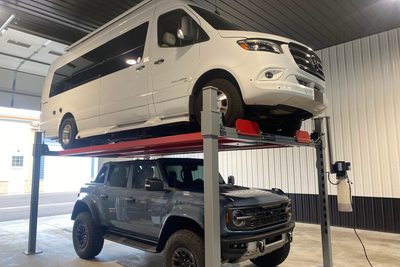

GL-12000WD
|

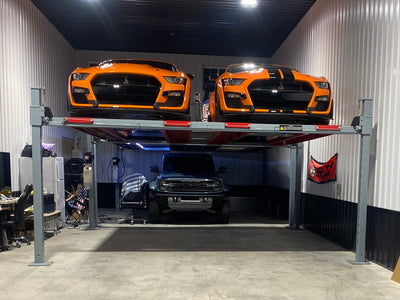

GL-10000SXS
|
|---|---|---|---|---|
| Lift Type | 4 Post | 4 Post | 4 Post | 4 Post |
| Lifting Capacity | 9,000 lbs. | 9,000 lbs. | 12,000 lbs. | 10,000 lbs. |
| Overall Height of Corner Posts | 93" - 7'9" | 105" - 8'9" | 105" - 8'9" | 105" - 8'9" |
| Max Clearance on Top Lock | 70" - 5'10" | 82" - 6'10" | 82" - 6'10" | 82" - 6'10" |
| Size Column | 5" x 5" | 5" x 5" | 5" x 5" | 5" x 5" |
| Size Baseplate | 12" x 12" | 12" x 12" | 12" x 12" | 12" x 12" |
| Track Height | 4.5" | 4.5" | 4.5" | 4.5" |
| Track Length | 174" - 14'6" | 200" - 16'8" | 203" - 16'11" | 192" - 16'0" |
| Track Width | 18.75" | 18.75" | 24" | 18.75" |
| Overall Length (no ramps) | 186" - 15'6" | 211" - 17'7" | 215" - 17'11" | 203" / 16'11'' |
| Overall Width Outside Posts | 108" - 9" | 114" - 9'5" | 124" - 10'5" | 202" / 16'10'' |
| Floor Space Footprint | L 186” / 15'6'' x W 113” / 9'5'' | L 211” / 17'7'' x W 119” / 9'11'' | L 215” / 17'11'' x W 129” / 10'9'' | L 203" / 16'11'' x W 207" / 17'3'' |
| Outside Width Track to Track | 75” | 75" or 79" | 85” | 75" |
| Width Between Rails / Track | 37.5” / 34.75” | 37.5” / 34.75” | 37.5” / 34.75” | 37.5” / 34.75” |
| Width Between Posts | 98" / 8'2" | 104" - 8'8" | 114'' / 9'6'' | 192" / 16' |
| Standard Motor | 120V 20AMP | 120V 20AMP | 240V 20AMP | 240V 20AMP |
| Shipping Weight | 2,275 lbs | 2,570 lbs | 3,000 lbs | 4,400 lbs |
| Shipping Dimensions | 175" x 21" x 27" | 200" x 21" x 28" | 205" x 25" x 29" | TOP: 193"x23"x28" BOTTOM: 208"x23"x24" |
| Pulley Size | 5'' | 5'' | 5'' | 5'' |
| Operation Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Mobility Option | Caster kit Included | Caster kit Included | Caster kit Included | Caster kit Included |
| Ramp Size | 36'' | 36'' | 36'' | 48'' |
| Cable Keepers on Every Pulley | ✔ | ✔ | ✔ | ✔ |
| Secondary Lock | ✔ | ✔ | ✔ | ✔ |
| Laser Lock Cutouts | ✔ | ✔ | ✔ | ✔ |
| Boxed-in Runways | ✔ | ✔ | ✔ | ✔ |
| Reinforced Crossbars | ✔ | ✔ | ✔ | ✔ |
| Flow Restrictor / Anti-Surge Valve | ✔ | ✔ | ✔ | ✔ |
| Powder-Coat Finish | ✔ | ✔ | ✔ | ✔ |
| FEATURE |
GL-10K-FM
|
GL-10K-OH
|
GL-12K-FM
|
GL-12K-OH
|
|---|---|---|---|---|
| Lift Type | 2 Post | 2 Post | 2 Post | 2 Post |
| Lifting Capacity | — | — | 12,000 lb. | 12,000 lb. |
| Overall Height of Corner Posts | — | — | — | — |
| Max Clearance on Top Lock | — | — | — | — |
| Size Column | — | — | — | — |
| Size Baseplate | — | — | — | — |
| Track Height | — | — | — | — |
| Track Length | — | — | — | — |
| Track Width | — | — | — | — |
| Overall Length (no ramps) | — | — | — | — |
| Overall Width Outside Posts | — | — | — | — |
| Floor Space Footprint | — | — | — | — |
| Outside Width Track to Track | — | — | — | — |
| Width Between Rails / Track | — | — | — | — |
| Width Between Posts | — | — | — | — |
| Standard Motor | — | — | ETL-recognized 220V power unit | ETL-recognized 220V power unit |
| Shipping Weight | — | — | — | — |
| Shipping Dimensions | — | — | — | — |
| Pulley Size | — | — | — | — |
| Operation Type | — | — | — | — |
| Mobility Option | — | — | — | — |
| Ramp Size | — | — | — | — |
| Cable Keepers on Every Pulley | — | — | — | — |
| Secondary Lock | — | — | — | — |
| Laser Lock Cutouts | — | — | — | — |
| Boxed-in Runways | — | — | — | — |
| Reinforced Crossbars | — | — | — | — |
| Flow Restrictor / Anti-Surge Valve | — | — | — | — |
| Powder-Coat Finish | — | — | — | — |
Will It Fit? How tall do my ceilings need to be?
*Minimum Height Requirements:*XLT: 9 ft
HD: 8 ft
Ceiling Height Calculator
Measure the height of your vehicles and enter for Vehicle A & Vehicle B
Locking Heights
Clearance in Inches Under Runways
GL-9000HD
19"
24"
29"
34"
39"
44"
49"
54"
59"
64"
70"
GL-9000XLT
21"
26"
31"
36"
41"
46"
51"
56"
61"
66"
71"
77"
82"
GL-12000WD
21"
26"
31"
36"
41"
46"
51"
56"
61"
66"
71"
77"
82"
GL-10000SXS
21"
26"
31"
36"
41"
46"
51"
56"
61"
66"
71"
77"
82"
